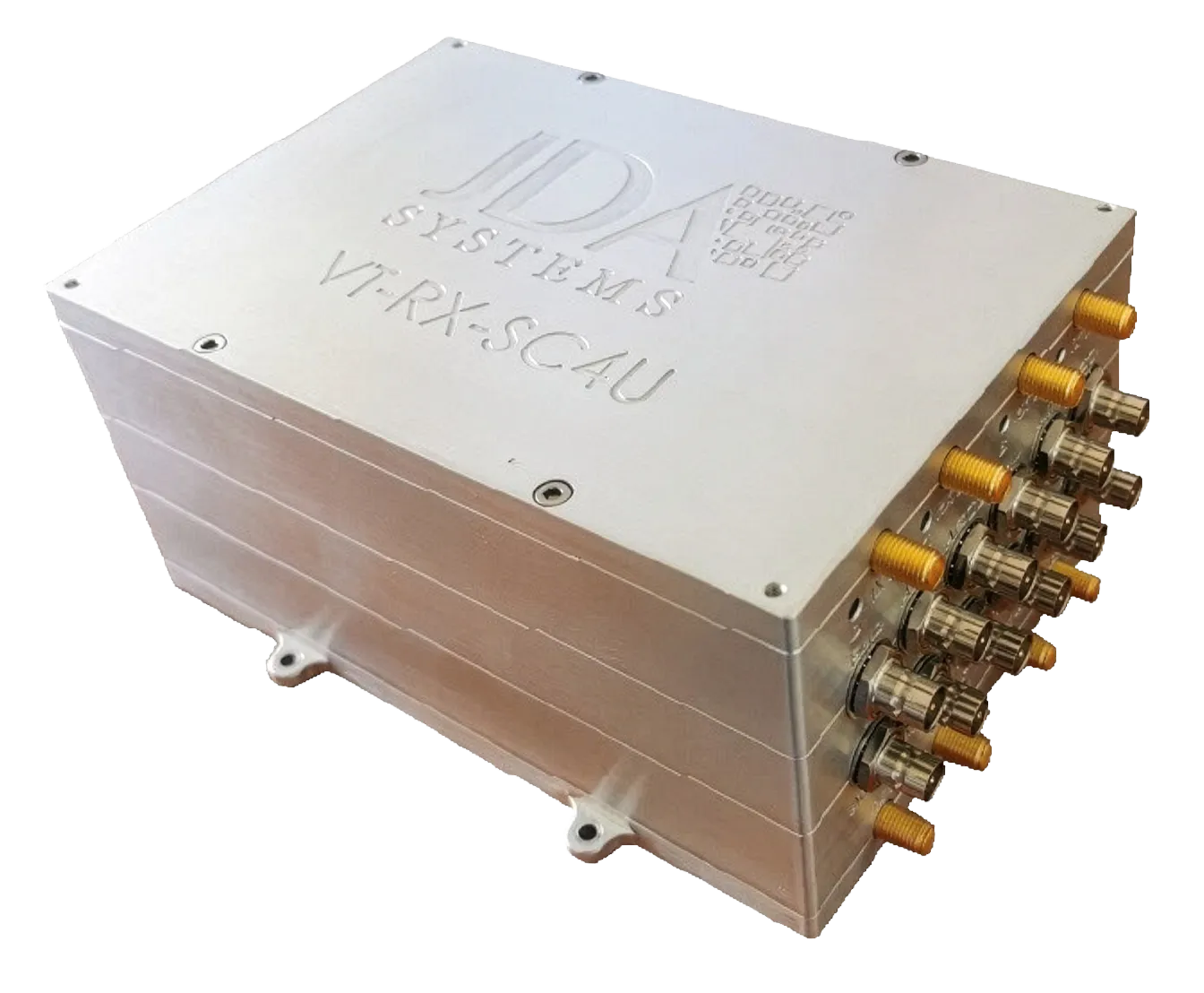

The VT-RX-SC4U ultra performance all band receiver system offers a no compromise, high density data reception (and optionally transmission) solution.
With integrated quad channel all band (70MHz to 6GHz) receivers, post detect combiner/best source selector, integrated digital bit syncs, frequency analyzer and oscilloscope functionality.
All this in a small form factor, low heat dissipation and ruggedized package.
The VT-RX-SC4U can operate stand alone or tethered.
Remote control and monitoring is supplied as standard which allows the supplied Windows compatible control software be used locally or remotely for single or multiple units.
This easy to use full function graphical software interface controls and monitors all aspects of the VT-RX-SC4U receiver systems operation.
The VT-RX-SC4U also comes standard with a human language interface which allows for easy operation from any networked control computer or from the customers own software.
The VT-RX-SC4U receiver system has a very wide bandwidth of more than 30 MHz per channel over the range 70MHz to 6GHz and an ultra low total noise figure of better than 4db.
This fully digital direct conversion receiver provides quad channel trellis based bit synchronization functionality for TIER0, TIER1 and optionally TIER2 reception with improved data reception performance over traditional reception systems of anywhere from 8db to 12db.
Uniquely the VT-RX-SC4U digital receiver can also supply analog data reception outputs suitable for legacy operation, such as analog Video reception, and improved performance AM down to below –125dBm for use with Auto Tracking antenna systems.
With our extensive experience in sourcing, delivering and supporting complete systems solutions regardless of size, JDA Systems would be happy to work with you to develop telemetry systems to exactly meet your requirements.
