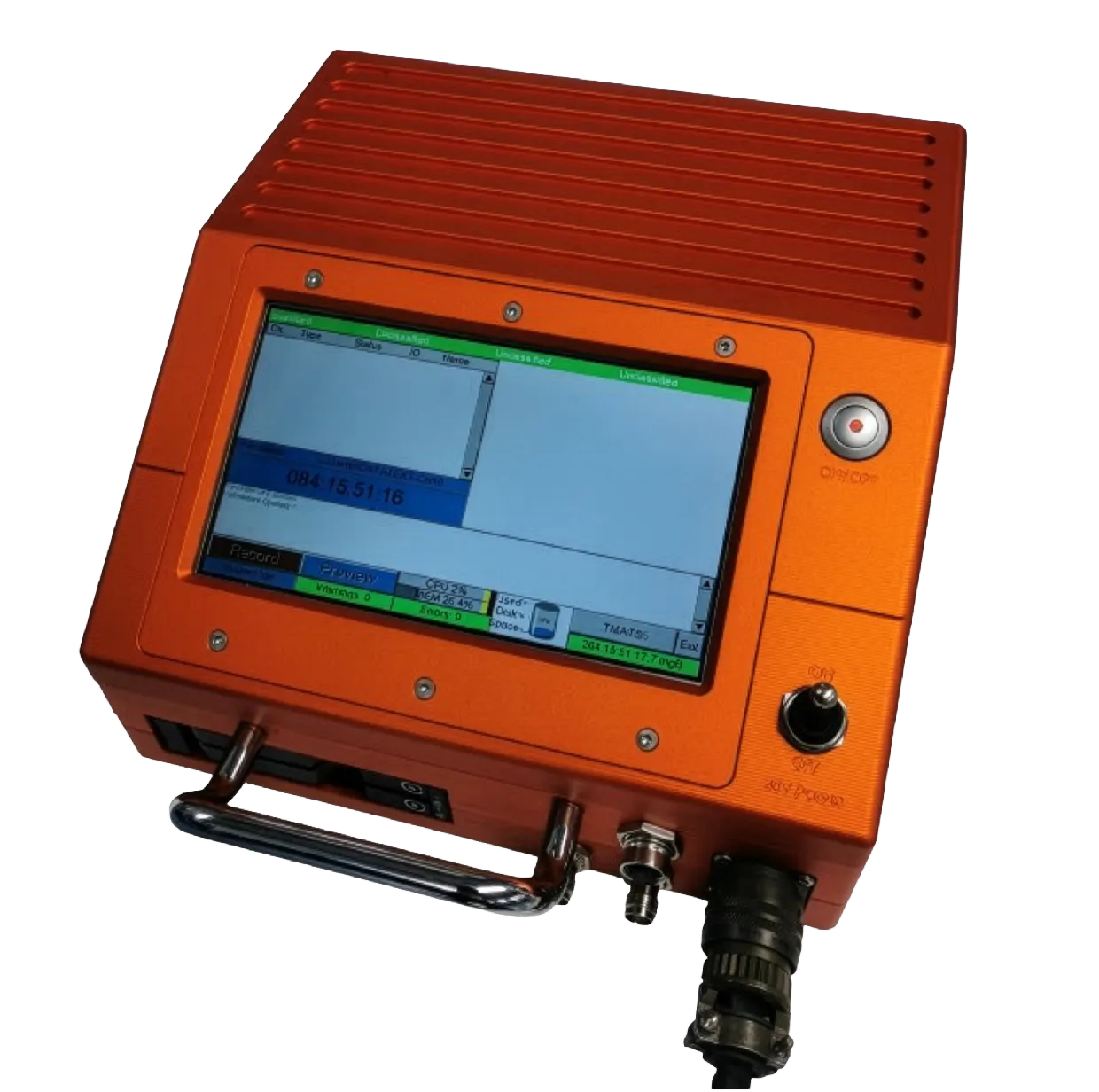

Recorder Encoder IRIG106 CH7 Gateway

It offers support for IRIG 106 Chapter 4, Chapter 10, Chapter 11 and Chapter 7 in a particularly small form factor able to withstand harsh environments.

The rugged milled aluminum case contains everything needed to gather data from numerous network based data sources and combine those for recording and data distribution.

It contains a GPS based NTP/PTP time server to keep the remote data sources time synced.

Support is provided for numerous RTSP network video streams, also up to four PCM telemetry signals can be fed directly to the recorder.

The Recorder can generate up to four simultaneous IRIG106 Chapter 4, 7 and 8 data streams to be used locally or remotely over the available RF telemetry link.

This link covers all standard telemetry rf band frequencies.

The recorder accepts uplink IRIG106 Chapter 7 data streams for command and control, even being able to change the transmitted data selection, rates and RF frequencies on the fly.

Network support for pilot and engineering displays is available as standard.

For local usage and setup the Recorder is fitted with a service USB 3.0 port so it is possible to connect a mouse, keyboard and display directly to the unit, or of course to fully remote control the unit over the built in gigabit Ethernet interface.
​
Two removable built in solid state disks are fitted, one that contains the operating systems and another for the IRIG106 Chapter10/11 user data. Both can easily be removed for declassification of the unit.
